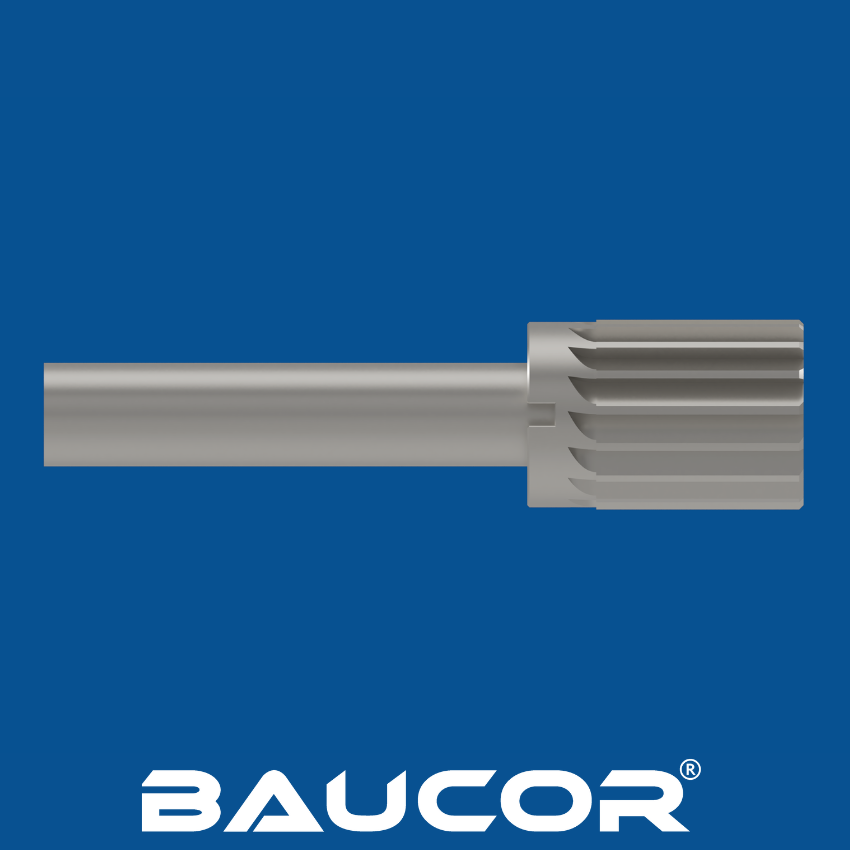

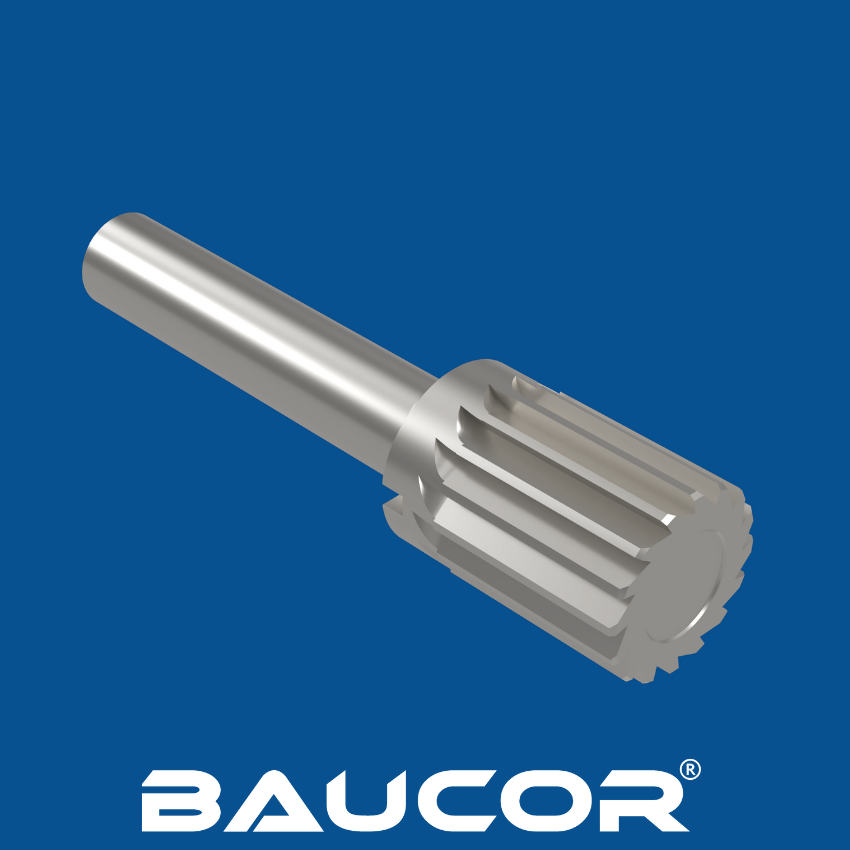

Machining:

• Turning: The blanks are mounted on a lathe and turned to create the external profile, including the tapered bore for arbor mounting.
• Drilling: The center hole is drilled to accommodate the arbor.
• Milling: Flutes (cutting edges) are milled along the outer surface, ensuring precise geometry and spacing for optimal chip evacuation and cutting performance.
• Grinding: The cutting edges are ground to the correct angles and clearances, ensuring a sharp and accurate cutting edge.
• Broaching: Drive slots or keyways are broached into the reamer body to engage with the arbor's drive lugs or keys.

Heat Treatment:

• Hardening and tempering processes are applied to achieve the desired hardness and toughness for the reamer material.
• Hardening increases hardness while tempering reduces brittleness and improves toughness.
• Specific heat treatment parameters are carefully controlled based on the chosen material to ensure optimal performance.

Finishing:

• Final grinding operations are performed to achieve the desired surface finish and dimensional accuracy.
• The cutting edges are honed to a fine edge for optimal cutting performance.
• The reamer body is polished for smooth operation and easy chip removal.

Inspection and Quality Control:

• Each reamer undergoes rigorous inspection to verify its dimensions, cutting geometry, and surface finish.
• Functionality testing is performed to ensure proper fitment on the arbor and cutting performance.
• Quality control measures ensure that the reamers meet or exceed industry standards for accuracy and durability.

1. Marking and Packaging:

• Reamers are marked with identification information, including size, material, and manufacturer's logo.
• They are then carefully packaged for shipping and distribution.

The manufacturing process of shell reamers requires specialized knowledge, precision machining capabilities, and stringent quality control measures. Reputable manufacturers like Baucor adhere to strict standards to ensure the production of high-quality tools that deliver accurate and reliable performance in demanding applications.

Important Considerations:

• Specific Offerings: The exact sizes available from Baucor may differ. It's always best to consult their catalog or website for the most up-to-date and accurate information.
• Custom Sizes: Many manufacturers, including Baucor, may offer custom shell reamer sizes upon request to meet specific customer needs.
• Application: The size of the shell reamer needed will depend on the diameter of the hole being machined and the specific application.

The choice of material for shell reamers is crucial for their performance, durability, and suitability for specific applications. Here's a detailed look at the various materials used in their construction:

Common Materials:

High-Speed Steel (HSS):

• The most widely used material for shell reamers due to its excellent combination of hardness, wear resistance, and toughness.
• Suitable for reaming a wide range of materials, including most steels, cast iron, aluminum, and plastics.
• Different grades of HSS are available, with varying levels of alloying elements for improved performance in specific applications.
• M1, M2: General-purpose HSS grades suitable for most reaming applications.
• M35, M42: Cobalt-alloyed HSS grades with enhanced hardness and hot hardness, ideal for reaming harder materials and higher cutting speeds.
• M7: Molybdenum-based HSS with improved toughness for interrupted cutting and shock resistance.

Cobalt Steel (HSS-Co):

• Contains a higher percentage of cobalt compared to HSS, resulting in enhanced hardness, hot hardness, and wear resistance.
• Suitable for reaming difficult-to-machine materials like stainless steel, titanium alloys, and heat-resistant alloys.
• Offers improved tool life and cutting performance at higher speeds and feeds.
• M35, M42: Common cobalt steel grades used for shell reamers.

1. Carbide:

• Extremely hard and wear-resistant material, offering superior cutting performance and tool life compared to HSS.
• Ideal for high-production reaming operations, abrasive materials, hardened steels, and exotic alloys.
• Can be used in both solid carbide and carbide-tipped shell reamer configurations.
• Tungsten Carbide: The most common type of carbide used for reamers, offering a balance of hardness, toughness, and wear resistance.
• Titanium Carbide: Offers enhanced hardness and wear resistance compared to tungsten carbide, but may be more brittle.

Specialized Materials:

Powdered Metal (PM) HSS:

• Produced through powder metallurgy, resulting in a finer grain structure and improved properties compared to conventional HSS.
• Offers enhanced toughness, wear resistance, and red hardness (ability to maintain hardness at elevated temperatures).
• Suitable for demanding applications and higher cutting speeds.

Cermet:

• A combination of ceramic and metal, offering high hardness, wear resistance, and heat resistance.
• Used for high-speed reaming of hardened steels and cast iron.

1. Polycrystalline Diamond (PCD):

• The hardest known material, offering exceptional wear resistance and cutting performance.
• Used for reaming extremely abrasive materials like graphite, fiberglass, and ceramics.

Coating Options:

• Titanium Nitride (TiN): Provides a hard, wear-resistant coating with a gold color.
• Titanium Carbonitride (TiCN): Offers enhanced hardness and wear resistance compared to TiN with a silver-gray color.
• Titanium Aluminum Nitride (TiAlN): Provides superior hardness and heat resistance with a violet or purple color.
• Aluminum Titanium Nitride (AlTiN): Offers excellent thermal stability and oxidation resistance with a light gray or dark gray color.
• Diamond-Like Carbon (DLC): Extremely low friction coefficient and excellent wear resistance with a black or dark gray color.

By selecting the appropriate material and coating based on the specific application requirements, you can ensure optimal performance, durability, and cost-effectiveness for your shell reaming operations.

Coating shell reamers can significantly enhance their performance, tool life, and overall effectiveness. These coatings provide a protective layer that reduces friction, increases wear resistance, and improves heat dissipation. Here's a comprehensive list of coatings commonly used on shell reamers:

PVD Coatings (Physical Vapor Deposition):

Titanium Nitride (TiN):

• The most common coating for general-purpose reaming.
• Offers excellent hardness, wear resistance, and reduced friction.
• Provides a gold-colored finish.
• Suitable for reaming most common materials, including steel, cast iron, aluminum, and plastics.

Titanium Carbonitride (TiCN):

• Harder and more wear-resistant than TiN.
• Provides a silver-gray or dark gray finish.
• Ideal for reaming abrasive materials, hardened steels, and stainless steel.

Titanium Aluminum Nitride (TiAlN):

• Offers superior hardness and heat resistance compared to TiN and TiCN.
• Exhibits a violet or purple color.
• Ideal for high-speed reaming, dry reaming, and reaming of difficult-to-machine materials.

Aluminum Titanium Nitride (AlTiN):

• Provides excellent thermal stability and oxidation resistance.
• Exhibits a light gray or dark gray color.
• Ideal for high-temperature reaming applications and reaming of titanium alloys.

1. Chromium Nitride (CrN):

• Offers good adhesion to the substrate and excellent corrosion resistance.
• Exhibits a silver-gray color.
• Suitable for reaming corrosive materials and wet reaming applications.

CVD Coatings (Chemical Vapor Deposition):

1. Aluminum Oxide (Al2O3):

• Provides excellent wear resistance, thermal stability, and chemical inertness.
• Exhibits a clear or white color.
• Suitable for high-speed reaming, dry reaming, and reaming of abrasive materials.

Other Coatings:

1. Diamond-Like Carbon (DLC):

• Offers extremely low friction coefficient and excellent wear resistance.
• Exhibits a black or dark gray color.
• Ideal for reaming non-ferrous materials, plastics, and composite materials.

1. Polycrystalline Diamond (PCD):

• The hardest known material, offering unmatched wear resistance.
• Used for reaming extremely abrasive materials like graphite, fiberglass, and ceramics.

Choosing the Right Coating:

The selection of the optimal coating for your shell reamer depends on several factors, including:

• Workpiece Material: Different coatings are suitable for different workpiece materials. Consider the hardness, abrasiveness, and reactivity of the material being reamed.
• Reaming Conditions: Cutting speeds, feeds, coolant usage, and the presence of abrasive contaminants will influence the coating's performance and longevity.
• Cost Considerations: The cost of the coating and its expected benefits in terms of tool life and productivity should be weighed against the overall cost of the operation.

By carefully evaluating these factors and choosing the appropriate coating, you can significantly enhance the performance, durability, and cost-effectiveness of your shell reamers.

Shell reamers are versatile tools used across numerous industries and applications where precise enlargement and finishing of large-diameter holes are essential. Their ability to handle larger hole sizes makes them indispensable in various sectors:

Industrial Applications:

Machining and Manufacturing:

• Enlarging and finishing holes in large workpieces like engine blocks, gearboxes, pumps, and heavy machinery components.
• Creating precise holes in dies, molds, and fixtures used in manufacturing processes.
• Reaming out holes for bushings, bearings, and other components in industrial equipment.

Oil and Gas Industry:

Reaming holes in drilling equipment, wellheads, pipeline components, and other oilfield machinery.

Enlarging and finishing holes in large valves and fittings used in oil and gas processing plants.

• Aerospace Industry:
• Creating precise holes in aircraft structures, engine components, landing gear, and other aerospace parts.
• Reaming out holes for fasteners, bushings, and bearings in aircraft assembly.

Other Applications:

Shipbuilding:

• Reaming large holes in ship hulls, propellers, and other marine structures.
• Enlarging holes for pipe fittings and valves in shipboard systems.

Power Generation:

• Reaming holes in turbine components, generator housings, and other power generation equipment.

Mining and Construction:

Enlarging and finishing holes in heavy machinery components used in mining and construction equipment.

• General Maintenance and Repair:
• Reaming out worn or damaged holes in large equipment and machinery to restore proper fit and function.

Benefits of Using Shell Reamers:

The use of shell reamers in these applications offers several advantages:

• Precision: They can achieve precise hole dimensions with tight tolerances, ensuring accurate fits and optimal performance of critical components.
• Versatility: By using different sized shells on the same arbor, a wide range of hole sizes can be accommodated with fewer tools.
• Cost-Effectiveness: The interchangeable shell design reduces tooling costs compared to using multiple solid reamers for different hole sizes.
• Reduced Weight: The hollow construction makes them lighter and easier to handle than solid reamers of the same diameter, reducing operator fatigue.

Shell reamers are essential tools for professionals in various industries where large-diameter hole machining is required. Their precision, versatility, and cost-effectiveness make them a valuable asset in any machine shop or fabrication workshop.

Shell reamers find application in a wide range of industries due to their ability to enlarge and finish holes with precision. Some of the key industries that utilize shell reamers include:

• Automotive: Used for machining precision holes in engine blocks, transmission housings, and other automotive components.
• Aerospace: Employed for reaming holes in aircraft structures, landing gear components, and engine parts where high tolerances are critical.
• Heavy Machinery: Utilized in the manufacturing of large-scale machinery such as construction equipment, mining equipment, and agricultural machinery.
• Oil and Gas: Used for reaming holes in pipes, valves, and other components used in drilling and refining operations.
• Power Generation: Applied in the manufacturing of turbines, generators, and other power generation equipment.
• General Manufacturing: Utilized in various manufacturing processes to achieve precise hole dimensions and surface finishes.

Additionally, shell reamers are used in repair and maintenance operations across various industries where precise hole enlargement or refinishing is required.

Shell reamers are compatible with various machines designed for heavy-duty machining of large workpieces. These include:

Lathes: Engine lathes are used for smaller shell reamers, while heavy-duty lathes can accommodate larger ones for machining bigger holes.

Horizontal Boring Mills: Ideal for reaming large-diameter holes in heavy workpieces mounted on a table, using a boring bar equipped with a shell reamer.

Vertical Boring Mills (VBM): Similar to horizontal boring mills, VBMs offer vertical machining capabilities for large workpieces. Shell reamers can be mounted on the VBM's ram or turret.

CNC Machining Centers: Both horizontal and vertical machining centers can be programmed to perform reaming operations with shell reamers, along with other machining processes.

Special Purpose Machines: Deep hole drilling machines and pipe beveling machines are examples of specialized machines that utilize shell reamers for specific tasks.

As a global leader in cutting tools, Baucor is dedicated to providing comprehensive support for our shell reamers. We want our customers to have the optimal solutions tailored to their specific needs.

Here's what you can expect from our design and engineering support:

Custom Reamer Design:

• Application Analysis: We thoroughly analyze your reaming requirements, taking into account your workpiece material, hole dimensions, tolerances, desired surface finish, and any specific industry standards you need to adhere to.
• Tool Design and Optimization: Using advanced software and decades of experience, we design custom shell reamers optimized for your specific application. We carefully select the material, coating, geometry, and number of flutes to ensure optimal performance, tool life, and cost-efficiency.
• Prototype Development and Testing: For complex or critical applications, we may develop prototypes to test and validate in your actual production environment. This allows us to fine-tune the design and ensure it meets your exact needs before full-scale production.

Engineering Consultation:

• Reaming Process Optimization: Our expert engineers, with their deep understanding of machining processes, provide recommendations for optimizing your reaming operations. This includes detailed guidance on cutting parameters (speed, feed, coolant), tool selection based on your specific machinery, and troubleshooting common reaming challenges.
• Material and Coating Selection Guidance: We leverage our extensive knowledge of materials science to assist you in choosing the most suitable reamer material and coating. Factors such as workpiece material, hardness, and desired surface finish are carefully considered to ensure the best possible performance and longevity.
• Performance Analysis and Continuous Improvement: We go beyond initial recommendations and offer ongoing performance analysis. By collecting data on reamer performance in your real-world applications, we can identify areas for improvement and provide tailored solutions to enhance tool life, productivity, and overall reaming efficiency.

1. Technical Support:

• Comprehensive Online Resources: We offer a wealth of online resources, including technical data sheets, application guides, instructional videos, and troubleshooting FAQs. These resources are designed to empower you with the knowledge you need to make informed decisions and get the most out of your Baucor shell reamers.
• Tailored Training and Workshops: We understand that each customer's needs are unique. That's why we offer tailored training sessions and workshops covering reamer selection, application, maintenance, and troubleshooting. Our goal is to equip your team with the skills and knowledge to achieve optimal results.
• Proactive Customer Service: Our dedicated customer service team is readily available to answer your questions, address concerns, and provide expert technical assistance throughout the entire lifecycle of your reamers. We are committed to being your long-term partner in success.

By offering this comprehensive suite of design, engineering, and technical support services, Baucor goes above and beyond being a mere cutting tool supplier. We are your trusted partner, dedicated to helping you achieve your manufacturing goals through optimized reaming solutions and unwavering support.

Designing or selecting shell reamers requires careful consideration of various factors to ensure optimal performance, accuracy, and tool life. Here are the essential design guides:

Material Selection:

• Workpiece Material: Choose a reamer material harder and more wear-resistant than the workpiece material. Consider the hardness, abrasiveness, and reactivity of the material being reamed.
• Cutting Conditions: The selected material should withstand the cutting speeds, feeds, and temperatures involved in the reaming process.
• Cost-Effectiveness: Balance the material cost with its expected tool life and performance benefits. Common materials include high-speed steel (HSS), cobalt steel (HSS-Co), and carbide.

Flute Design:

• Number of Flutes: Determine the number of flutes based on the workpiece material and desired finish. More flutes generally provide smoother finishes but may require higher cutting forces.
• Flute Geometry: Optimize flute geometry (rake angle, relief angle, margin width) for chip evacuation, cutting forces, and tool life.
• Flute Spacing: Ensure adequate spacing between flutes for efficient chip removal and prevent chip clogging.

Reamer Body Design:

• Shell Thickness: Sufficient thickness is needed for rigidity and to prevent chatter during reaming.
• Bore Diameter and Taper: The bore diameter and taper must match the arbor specifications for a secure fit and accurate alignment.
• Drive Slots or Keyways: Accurately machined drive slots or keyways ensure positive drive and prevent slippage on the arbor.

Arbor Selection:

• Material and Construction: Choose a sturdy arbor made from high-quality steel with proper heat treatment for durability.
• Taper and Size: Ensure the arbor taper matches the reamer bore taper, and the size is appropriate for the machine spindle and reamer diameter.

Pilot Diameter and Length:

• Pilot Diameter: The pilot should be slightly smaller than the initial hole diameter to guide the reamer and ensure concentricity.
• Pilot Length: Sufficient pilot length provides stability and prevents chatter during reaming.

Coating Selection (Optional):

• Workpiece Material and Cutting Conditions: Choose a coating compatible with the workpiece material and reaming parameters. Consider factors like hardness, abrasiveness, and desired surface finish. Common coatings include TiN, TiCN, TiAlN, and others.

Tolerances and Surface Finish:

• Hole Tolerance: Specify the required hole tolerance based on the functional requirements of the application.
• Surface Finish: Determine the desired surface finish and select a reamer with the appropriate number of flutes and cutting geometry to achieve it.

Manufacturer Recommendations:

• Consult Manufacturer's Guidelines: Refer to the manufacturer's recommendations for specific design considerations, cutting parameters, and maintenance procedures for optimal reamer performance and tool life.

By adhering to these design guides and working with a reputable manufacturer like Baucor, you can ensure that your shell reamers are designed and manufactured to meet the specific requirements of your application, delivering optimal performance, accuracy, and longevity.
