Heat Treatment:

• The reamers are hardened and tempered to enhance their hardness, toughness, and wear resistance. This usually involves heating the reamer to a specific temperature and then rapidly cooling it, followed by a tempering process to relieve internal stresses.

Grinding:

• The hardened reamers are ground to achieve the final dimensions and surface finish.
• The cutting edges are sharpened to ensure precise and efficient material removal.

Coating (Optional):

• Some left-hand spiral reamers may be coated with materials like titanium nitride (TiN) or titanium carbonitride (TiCN) to further improve their hardness, reduce friction, and extend tool life.

Inspection and Quality Control:

• Rigorous quality control measures are implemented throughout the manufacturing process to verify dimensional accuracy, flute geometry, and overall reamer performance.

1. Marking and Packaging:

• The finished reamers are marked with relevant information, such as size, material, and coating, and then packaged for distribution to end-users.

By adhering to these steps and employing precise manufacturing techniques, manufacturers can produce high-quality left-hand spiral reamers that deliver reliable and efficient performance in specialized reaming applications where chip evacuation and cutting stability are critical.

As a leading manufacturer of cutting tools, Baucor likely offers a wide range of left-hand spiral reamer sizes to cater to the specific needs of industries and applications where this type of reamer is preferred. While their exact product catalog may vary, you can anticipate the following size ranges and types:

Fractional Sizes (Inch):

• Standard: Commonly used sizes like 1/8", 3/16", 1/4", 5/16", 3/8", 1/2", and so on, covering a wide spectrum of hole sizes required in various applications.
• Oversize and Undersize: Baucor might also offer oversize and undersize reamers for specific applications where precise adjustments to hole diameters are needed.

Metric Sizes (Millimeter):

• Standard: A broad selection of metric sizes, likely starting from 1mm, 1.5mm, 2mm, 2.5mm, and progressing to larger diameters like 10mm, 12mm, or even higher, catering to users who prefer metric measurements.

Specialty Sizes:

• Chucking Reamers: These reamers have a straight shank and are designed for use in drill chucks. Baucor may offer chucking reamers in various sizes for both hand-held and machine-held operations.

Shell Reamers: These reamers have a hollow center and are mounted on arbors. Baucor might offer shell reamers in different sizes for use in machine reaming applications.

Left-hand spiral reamers, like their right-hand counterparts, are manufactured from a variety of materials, each chosen for specific properties that optimize their performance in different applications. Here's a list of the possible materials used:

Common Materials:

1. High-Speed Steel (HSS): This is the most common material for left-hand spiral reamers due to its balance of hardness, toughness, and affordability. HSS reamers are suitable for general-purpose reaming in most materials, including steel, aluminum, and plastics.
2. Cobalt Steel (HSS-Co): This is a variation of HSS that contains cobalt, enhancing its heat resistance and wear resistance. Cobalt reamers are often used for reaming harder materials, such as stainless steel, titanium, and high-temperature alloys.
3. Carbide (Solid Carbide or Carbide-Tipped): Carbide is an extremely hard and wear-resistant material, making it ideal for high-volume production and reaming abrasive materials. Solid carbide reamers offer superior performance and longevity, while carbide-tipped reamers provide a cost-effective option with good wear resistance.

Less Common Materials:

1. Powdered Metal (PM) HSS: This type of HSS is formed from powdered metal, resulting in a finer grain structure and improved wear resistance compared to traditional HSS. PM HSS reamers are often used for high-performance reaming applications.
2. Cermet: Cermet is a composite material made of ceramic and metal, offering a combination of hardness, toughness, and wear resistance. Cermet reamers are suitable for reaming hardened steels and other difficult-to-machine materials.

Additional Considerations:

• Coating: Left-hand spiral reamers can be coated with materials like titanium nitride (TiN), titanium carbonitride (TiCN), or other specialized coatings to further improve their hardness, reduce friction, and extend tool life.
• Shank Material: The shank of the reamer, which is held in the machine, is typically made of steel.

Choosing the right material for a left-hand spiral reamer depends on the specific application, the workpiece material, the desired surface finish, and budget considerations. For most general-purpose reaming, HSS is a suitable and cost-effective choice. However, for harder materials, high-volume production, or demanding applications, cobalt or carbide reamers may be more appropriate.

Left-hand spiral reamers, like their right-hand counterparts, can benefit from various coatings to enhance their performance, tool life, and versatility in different machining applications. Here are some of the common and specialized coatings used:

Common Coatings:

1. Titanium Nitride (TiN): This gold-colored coating is widely used for its hardness, reduced friction, and improved heat resistance. TiN-coated left-hand spiral reamers offer increased tool life, better chip evacuation, and a smoother surface finish.
2. Titanium Carbonitride (TiCN): This hard, black coating provides superior wear resistance and lower friction compared to TiN. TiCN-coated reamers are ideal for machining abrasive or harder materials and for high-performance reaming applications.
3. Titanium Aluminum Nitride (TiAlN): This violet-colored coating exhibits excellent heat resistance and hardness, making it well-suited for high-speed reaming and machining of difficult-to-cut materials like stainless steel and titanium alloys.
4. Aluminum Titanium Nitride (AlTiN): This hard, light grey coating boasts high oxidation temperature and wear resistance, making it suitable for high-speed machining of various materials, including steel, cast iron, and nickel-based alloys.

Specialized Coatings:

1. Diamond-Like Carbon (DLC): This thin, hard coating provides exceptional wear resistance, low friction, and chemical inertness. DLC-coated reamers are suitable for machining non-ferrous metals, plastics, and composites.
2. Chromium Nitride (CrN): This coating offers good wear and corrosion resistance, making it suitable for reaming in corrosive environments or materials that tend to stick to the reamer.
3. Vapor Deposition Coatings: These coatings, such as aluminum chromium nitride (AlCrN) or zirconium nitride (ZrN), offer improved wear resistance, reduced friction, and better performance in specific applications.

Choosing the Right Coating:

The ideal coating for a left-hand spiral reamer depends on several factors, including:

• Workpiece Material: The hardness and abrasiveness of the material being reamed will influence the type of coating needed. Harder materials generally require more wear-resistant coatings.
• Reaming Conditions: High-speed or high-volume reaming may necessitate coatings with superior heat resistance and lubricity.
• Desired Tool Life: Coatings can significantly extend the lifespan of reamers, so choosing the right coating can help reduce tool replacement costs.
• Required Surface Finish: If a very smooth surface finish is required, coatings like DLC may be more suitable.

Consulting with the reamer manufacturer or a knowledgeable supplier can help you select the optimal coating for your specific needs. By considering the material, reaming conditions, desired tool life, and required surface finish, you can ensure that your left-hand spiral reamer delivers the best possible performance and longevity.

Left-hand spiral reamers are specialized cutting tools used in specific machining scenarios where their unique chip evacuation and cutting action offer advantages over standard right-hand spiral reamers. They are typically used in the following applications:

1. Reaming Interrupted Holes: Left-hand spiral reamers excel at reaming interrupted holes, which are holes with features like keyways, cross holes, or slots that disrupt the continuous surface. The counter-clockwise spiral of the flutes pushes chips forward, preventing them from getting trapped in the interruptions and causing damage to the workpiece or reamer.

2. Reaming Hard Materials: Due to their chip-forward action, left-hand spiral reamers generate less cutting pressure and heat compared to right-hand reamers. This makes them well-suited for reaming harder materials like hardened steel and cast iron, where excessive heat can damage the tool and workpiece.

3. Reaming on Machines with Backlash: Backlash is a slight play or clearance in the gears or spindle of a machine tool. When reaming on machines with backlash, left-hand spiral reamers can help compensate for this movement by pushing against the backlash, resulting in more accurate and consistent hole sizes.

4. Reaming Blind Holes (Limited Depth): While right-hand spiral reamers are generally preferred for blind holes (holes that don't go all the way through), left-hand spiral reamers can be used for shallow blind holes where chip evacuation is not a major concern. The chip-forward action can be beneficial in these cases to prevent chips from clogging the bottom of the hole.

Industries that Utilize Left-Hand Spiral Reamers:

Left-hand spiral reamers find applications in various industries, including:

• Metalworking and Manufacturing: Used for reaming interrupted holes in gears, shafts, and other machine components.
• Automotive: Reaming holes in engine blocks, transmission housings, and other parts made of hard materials.
• Aerospace: Reaming holes in aircraft components with critical tolerances.
• Tool and Die Making: Creating precise holes in dies and molds with interrupted features.

While less common than right-hand spiral reamers, left-hand spiral reamers play a crucial role in specific machining scenarios where their unique characteristics provide distinct advantages in terms of chip evacuation, cutting forces, and accuracy.

Left-hand spiral reamers find applications in specific industries where their unique chip evacuation and cutting action offer advantages over standard right-hand spiral reamers. Here are some of the key industries that utilize left-hand spiral reamers:

1. Manufacturing and Metalworking: These reamers are commonly used in machine shops and fabrication facilities for reaming interrupted holes in various metal components, such as gears, shafts, and other machine parts. The left-hand spiral effectively pushes chips forward, preventing them from getting trapped in the interruptions and causing damage to the workpiece or reamer.
2. Automotive Industry: In the automotive industry, left-hand spiral reamers are often used for reaming holes in engine blocks, transmission housings, and other parts made of hard materials. The chip-forward action reduces cutting forces and heat generation, making them suitable for reaming hardened steel and cast iron.
3. Aerospace Industry: The aerospace industry utilizes left-hand spiral reamers for specific applications where chip evacuation is critical, such as reaming holes in aircraft components with interrupted features or cross-holes.
4. Tool and Die Making: In the tool and die industry, left-hand spiral reamers are employed to create precise holes in dies and molds with interrupted features. The reamers' ability to prevent chip clogging is crucial for maintaining the integrity of these precision tools.
5. General Engineering: Left-hand spiral reamers can be used in various general engineering applications where their specific advantages are required. For example, they can be used on machines with backlash in the spindle or feed mechanism to compensate for this movement and maintain accuracy.

While left-hand spiral reamers are not as widely used as their right-hand counterparts, they play a crucial role in specific machining scenarios where their unique characteristics provide distinct advantages in terms of chip evacuation, cutting forces, and accuracy. Their usage is particularly valuable in industries dealing with hard materials or interrupted holes, where traditional reamers may not perform optimally.

Left-hand spiral reamers are used in various machines across different industries, particularly where their unique chip evacuation properties are beneficial. Here are some of the common machines that utilize left-hand spiral reamers:

Drilling Machines:

• Drill Presses: These stationary machines provide precise control for reaming operations, making them suitable for using left-hand spiral reamers in applications where chip evacuation is critical.
• Handheld Drills: Portable drills offer flexibility for reaming on-site or in tight spaces, although they may not provide the same level of precision as drill presses.

Lathes:

• Left-hand spiral reamers are commonly used in lathes for enlarging and finishing holes in workpieces that are being turned. The counter-clockwise spiral helps push chips forward and out of the hole, preventing clogging and ensuring a smooth finish.

Milling Machines:

• While primarily used for milling operations, left-hand spiral reamers can be used in milling machines for reaming holes in specific locations on a workpiece. This is typically done when the workpiece is already mounted on the milling machine for other operations.

CNC Machines (Computer Numerical Control):

• CNC machining centers and lathes can be equipped with left-hand spiral reamers for automated and highly precise reaming operations, especially for complex parts or high-volume production.

1. Specialized Reaming Machines:

• Some manufacturers offer dedicated reaming machines designed specifically for using left-hand spiral reamers. These machines are optimized for precision and efficiency in applications where chip evacuation is crucial, such as reaming interrupted holes.

Choosing the Right Machine:

The choice of machine for using left-hand spiral reamers depends on several factors:

• Hole Size and Depth: The dimensions of the hole to be reamed will determine the appropriate machine and reamer size.
• Material: The material being reamed will influence the choice of reamer and the required cutting parameters. Harder materials may require specialized reamers and machines with higher torque.
• Hole Type: Left-hand spiral reamers are particularly suited for interrupted or through holes where chip evacuation is critical.
• Precision Requirements: Applications demanding tight tolerances and high precision may necessitate CNC machines or specialized reaming machines.
• Production Volume: For high-volume production, CNC machines or dedicated reaming machines may be preferred for their speed and automation.

By understanding the capabilities of different machines and considering your specific needs, you can choose the most suitable machine for using left-hand spiral reamers to achieve precise and smooth holes in your workpieces.

Baucor is dedicated to providing you with comprehensive design and engineering support to ensure your left-hand spiral reamer investment delivers optimal performance and efficiency. Our suite of services includes:

Custom Reamer Design: Our experienced engineering team collaborates with you to design custom left-hand spiral reamers tailored to your specific material, tolerance, and production needs.

Expert Material Selection Guidance: We leverage our extensive knowledge to recommend the ideal reamer material for your application, ensuring optimal tool life and performance.

Coating Recommendations: Our experts will guide you through choosing the perfect coating to enhance your reamer's performance, durability, and resistance to wear.

Reaming Process Optimization: We analyze your processes to identify areas for improvement, recommending strategies to increase efficiency, reduce tool wear, and boost productivity.

Troubleshooting and Technical Support: Our dedicated team is ready to assist you with any challenges, providing on-site or remote troubleshooting and access to our comprehensive knowledge base.

Training and Education: We offer comprehensive training programs to ensure your team has the knowledge and skills to maximize the potential of your Baucor reamers.

Calibration and Repair Services: Keep your reamers performing at their peak with our expert calibration and repair services, extending tool life and minimizing downtime.

With Baucor's comprehensive support, you can achieve superior results and maximize the value of your left-hand spiral reamer investment. Our commitment to your success is unwavering, and we're here to help you every step of the way.

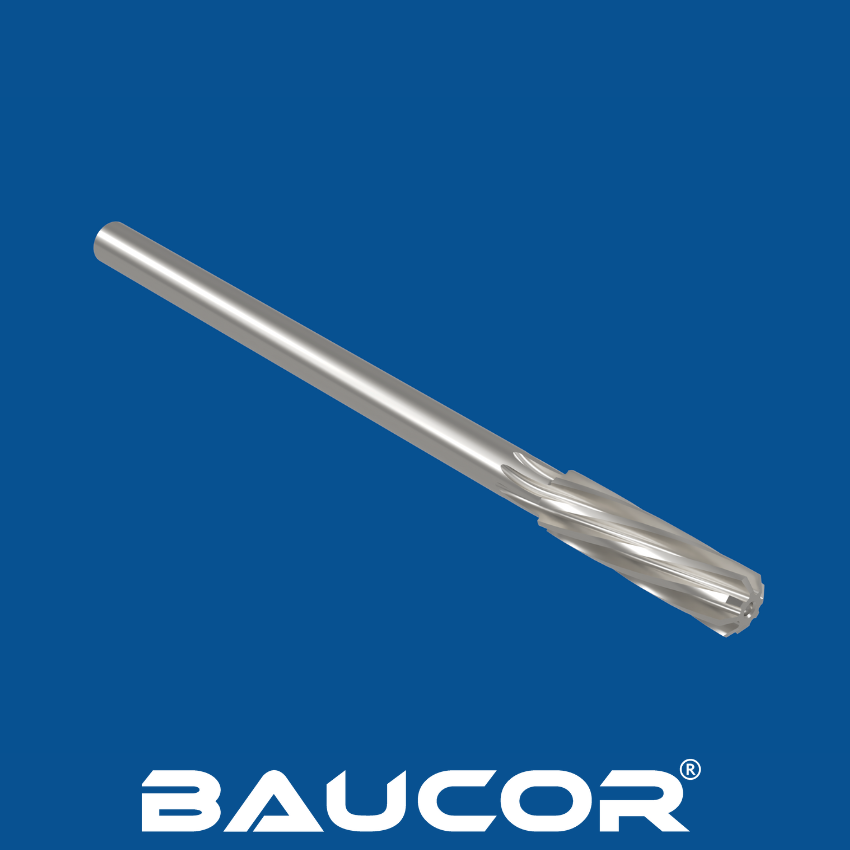

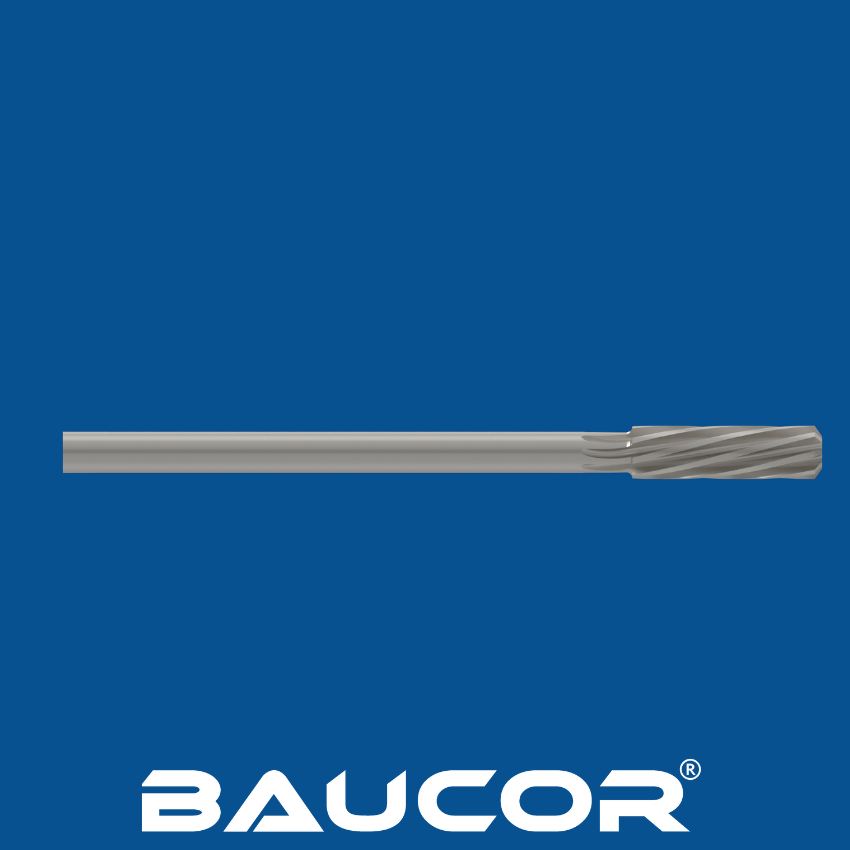

Left-hand spiral reamers, while similar to their right-hand counterparts, have distinct design considerations to optimize their performance in specific applications. Here's a breakdown of the key design guides:

Counter-Clockwise Flute Direction: The defining characteristic of a left-hand spiral reamer is the direction of its flutes. Unlike right-hand reamers, the flutes twist in a counter-clockwise direction. This design is crucial for pushing chips forward and out of the hole, preventing them from getting trapped in interrupted cuts or blind holes.

Number of Flutes: Left-hand spiral reamers typically have fewer flutes than right-hand reamers, often ranging from 4 to 6. This is to accommodate the larger chip load created by the chip-forward action and to maintain cutting stability.

Cutting Edge Geometry:

• Rake Angle: The rake angle on left-hand reamers is often slightly negative or neutral to reduce cutting forces and heat generation, especially when reaming harder materials.
• Relief Angle: Adequate relief behind the cutting edges is essential to prevent rubbing and ensure smooth chip flow.
• Margin Width: The margin width, the narrow land behind the cutting edge, is carefully designed to balance strength and cutting efficiency.

Chamfer Lead: The front end of the reamer has a chamfered lead to guide the tool into the hole and ensure smooth entry. The chamfer angle is typically designed to match the existing hole angle for optimal cutting action and to minimize chatter.

Material Selection:

• High-Speed Steel (HSS): A common choice for general-purpose left-hand reamers.
• Cobalt Steel (HSS-Co): Preferred for reaming harder materials due to its improved heat and wear resistance.
• Carbide: Offers exceptional hardness and wear resistance, ideal for high-volume production and demanding applications.

Coating (Optional):

• Titanium Nitride (TiN): A common coating that enhances hardness, reduces friction, and improves wear resistance.
• Titanium Carbonitride (TiCN): Offers superior wear resistance and lower friction compared to TiN, making it suitable for harder materials.
• Other Coatings: Additional coatings like aluminum titanium nitride (AlTiN) or diamond-like carbon (DLC) can also be applied for specific applications.

Shank Design:

• Left-hand spiral reamers typically have straight shanks for use in drill chucks.

By adhering to these design guidelines and selecting the right materials and coatings, manufacturers can produce high-quality left-hand spiral reamers that excel in specific reaming applications, such as interrupted holes and harder materials, where their unique chip evacuation and cutting action are advantageous.
